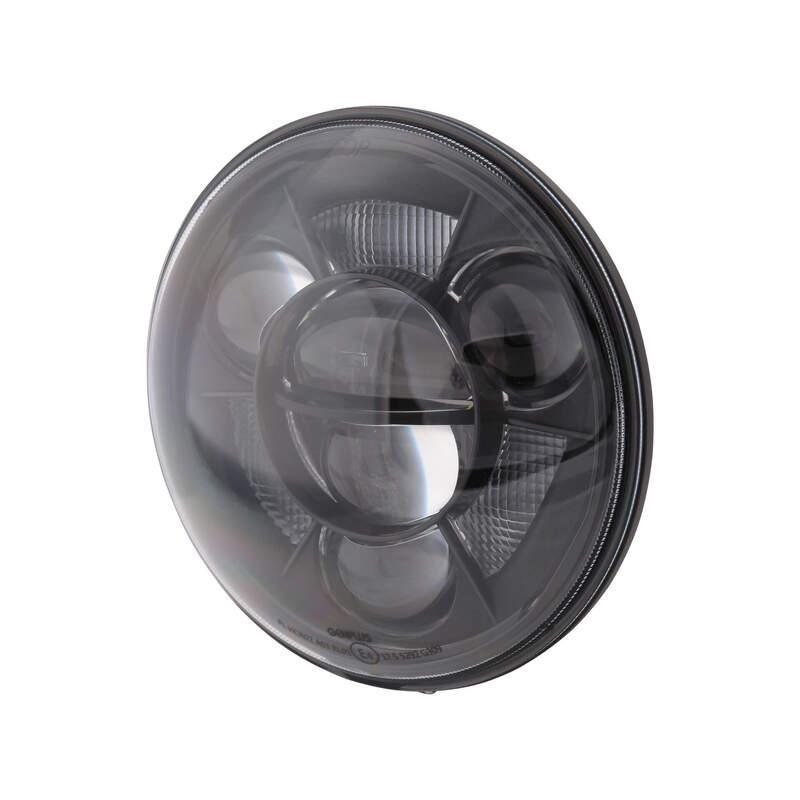

HIGHSIDER 226-005 : HIGHSIDER TYPE 11 LED Main Headlight Insert

HIGHSIDER TYPE 11 7 inch LED main headlight insert, E-approved

High beam, low beam, parking light and with TFL (daytime running light) function

The reflector emits an asymmetrical - only approved for right-hand traffic - luminous flux



See and be seen!

For motorcyclists of the highest importance. On many motorcycles, the H4 or H7 lamp lights up, more or less sparkling away. Seeing better usually also means being seen better at the same time, not unimportant when summer turns to fall and in times when cars are increasingly often equipped with bright daytime running lights. Whether to replace for better visibility at night, better visibility during the day, or to give your motorcycle a nicer look, if you are looking for a stylish and innovative power headlight, the LED main headlight is an excellent choice. The installed LED daytime running light in TYPE 11 is the perfect way to improve visibility during the day. The ellipsoid lenses in combination with powerful LEDs turn night into day and thus combine, a strong plus in safety with a polarizing unique optics.



Stunning - give your bike your unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!



Dimensions:

A diameter = 170 mm

GA diameter = 165 mm

I diameter = 160 mm

T = 60 mm

R = 9 mm

Total depth from glass to cooling fins: 96 mm

Cable length: 170 mm



Connections:

Power input: 3 pin connector

Black wire = ground (-)

White wire = low beam (+)

Blue wire = high beam (+)



TFL:

Black wire = ground (-)

Brown wire = daytime running lights (+)

Gray wire = parking lights (+)



Scope of supply: 1 piece.
