HIGHSIDER 360-231 : HIGHSIDER Control Indicators For installation

HIGHSIDER control display instrument. Telltale meter, black or chromed Aluminium housing, also to built in, smoke lens, 5 indicator lights.

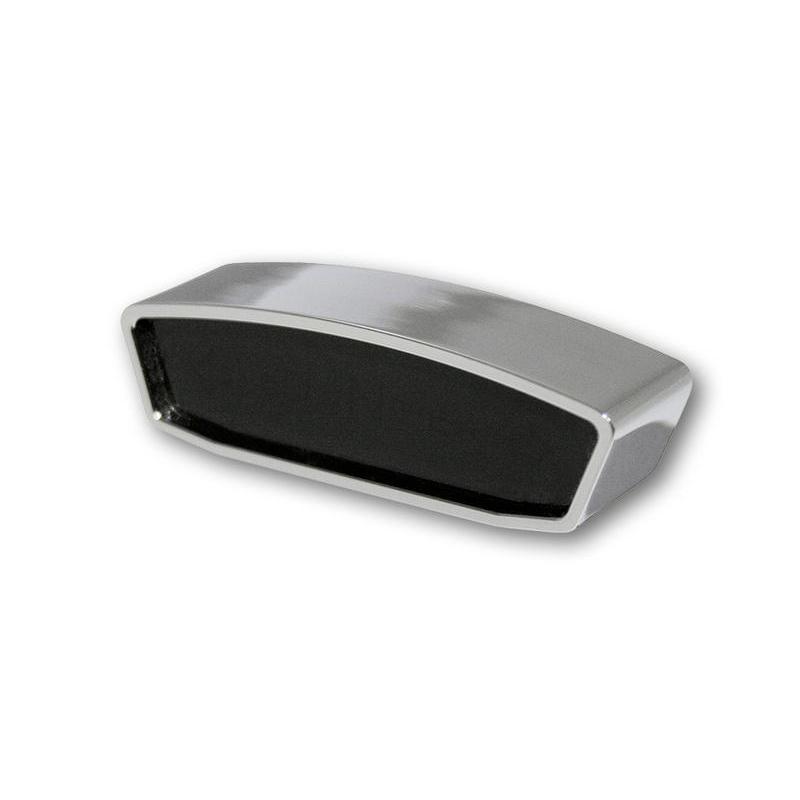

Control display instrument with a CNC-milled aluminum housing and tinted glass for installation. In the operating mode, the symbol corresponding to the function is displayed.

The ads at a glance:

• 2x turn signals


• high beam


• neutral


• o oil pressure

This fits you the extensive accessories of HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.

Dimensions:

• Width: 57 mm


• Height: 17,5 mm


• Depth: 18 mm

Connections:

• Black cable (ground) + orange cable = turn signal left


• Black cable (ground) + blue cable = turn signal right


• Black cable (ground) + yellow cable = high beam

If neutral or oil pressure is switched negative:

• connect gray cable to neutral signal and brown cable to 12V (+)


• connect green cable to oil pressure signal and purple cable to 12V (+)

If neutral or oil pressure is switched positive:

• connect brown cable to neutral signal and grey cable to ground (-)


• connect purple cable to oil pressure signal and green cable to ground (-)

Supplied with: 1 piece

Optionally available: Fitting aluminum clamp for 1 inch (25.4 mm) and 7/8 inch (22 mm) handlebars: Item No. 305-011
Available in a variety of body colors.
