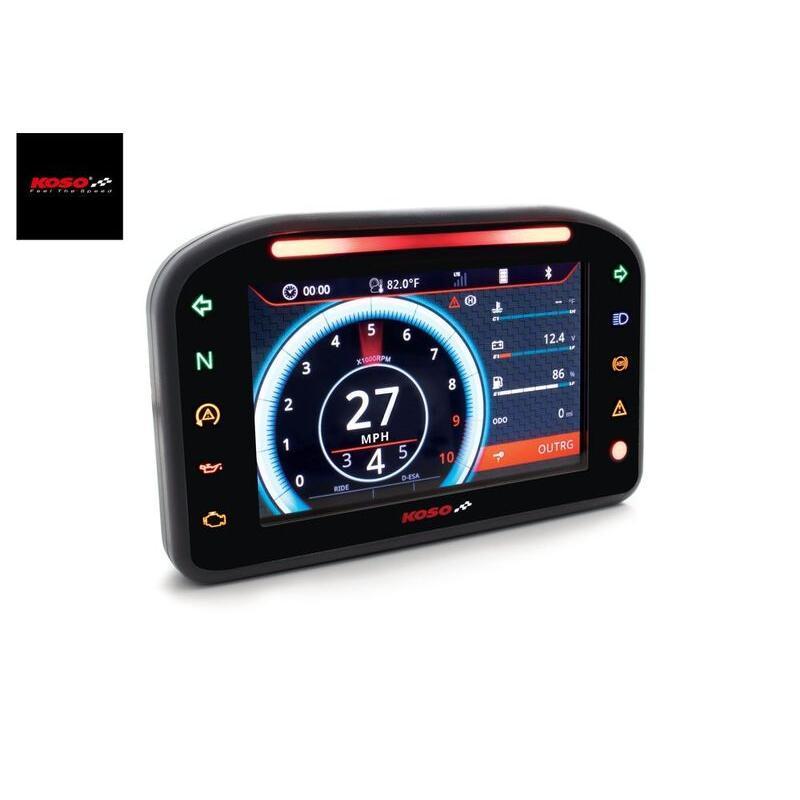

KOSO BA062010 : KOSO RX5 TFT Multifunctional Cockpit BMW

RX5 TFT suitable for BMW®* R 1200 GS 2013-2017

The new RX5 multifunction meter with TFT display a plug and play meter suitable for the BMW® R1200GS. This easy to install gauge features a wide screen for increased ease of use in addition to an innovative look to your bike. The RX5 allows you to connect your phone through its Bluetooth® option to see your incoming calls, the navigation system, the arrival time and much more. Featuring speed, odometer, tripmeter, hour meter, fuel meter, voltage, clock and stopwatch as well as 10 indicator lights, this meter will give you all the information you need.

Specifications

(R= Range U=Unit)

• Speedometer

  R: 0 ~ 225 MPH (0 ~ 360 km/h)

  U: 1 MPH or km/h (alternative)

• Odometer (internal and external)

  R: 0 ~ 999,999 miles (km) | U: 1 mile (km)

• Tripmeter 1, 2

  R: 0 ~ 9, 999.9 miles (km)

  U: 0.1 mile (km)

• RDTIME

  R: 0 ~ 99,999 hr and then returns to 0 | U: 0,1 hr

• Oil Mantenance

  R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km)

  • Value will decrease automatically

  • Warning range: Text will turn red as   the value is 0 mile (km) and below.

•


  Oil Mantenance 1, 2

  R: 300~10,000 miles (500~16,000 km) ~

  -999 km (mile) | U: 1 mile (km)

  • Value will decrease automatically

  • Warning range: Text will turn red as   the value is 0 mile (km) and below.

•


  Max. speed record

  R: 0 ~ 225 MPH (0 ~ 360 km/h)

  U: 1 MPH or km/h (alternative)

•


  Gear indicator

  R: N, 1 ~ 6

•


  Max. gear indicator

  R: N, 1 ~ 6

•


  Tachometer

  R: 0 ~ 10,000 RPM

•


  Shift light

  R: 2,000 ~ 10,000 RPM

  U: 100 RPM

•


  Max. RPM

  R: 0 ~ 10,000 RPM

• Air temperature

  R: -39.0 ~ 188.0 °F (-39.5 ~ 87,0 °C)| U: 0.1 °F (°C)

• Fuel meter

  R: 0 ~ 100% | U: 1%

• Riding mode

  R: RAIN, ROAD, DYNA, ENDURO,

  ENDURO PRO, DYNA PRO

• Clock

  R: 12 H or 24 H format

• Volt meter

  R: DC 8.0 ~ 18.0 V | U: DC 0.1 V

• Low voltage warning

  R: DC 8.0 ~ 13.0 V | U: DC 0.1 V

• High voltage warning

  R: DC 13.1 ~ 18.0 V | U: DC 0.1 V

• Tire pressure

  R: 0.0 ~ 3.5 bar(50 ~ 1,500 m)

  U: 1/32 mile (50 m)

• Tire pressure

  R: 1/32 ~ 30/32 mile (1 ~ 50 psi 7~344Pa,0.0~3.5kg/cm2)

  U: 0.1 bar(1 psi, 1kPa, 0.1kg/cm2)

• Heated grip

  R: OFF, 50%, 100%

•


  Bluetooth connection status

  R: Steady(connected), OFF(Unconnected)

•


  Phone battery

  R: 3 segments

•


  Incoming phone call

  D:

  • Name or number

  • “…” displayed  if > 12 letters

  • “No Caller ID” displayed when there is no name

• Estimated arrival time

  R: 00:00 23:59 (24H) 1:00 12:59 (12H)

  (Android supported, IOS not supported.)

• Estimated turning distance

  R: 0~999m 1~999km (0~528ft, 0,1~999.9 mile)

  U: 1m, 1km (1ft, 0.1 mile)(Android supported, IOS not supported)

• Push info




  • R:

    • Name: One line: no display when exceeding the range

    • Content: One line: no display when exceeding the range


  • Operating system:



    • iOS : supported


    • Android : not supported









•


  Backlight color

  R: Auto(automatically switch according to ambient light : day mode display for a bright environment and Night mode display for a dark environment), Day mode, Night mode.

•


  Indicator lights

  Left indicator / Neutral / Check Engine / ASC light / Engine oil Level warning / Right indicator / RPM shift light / High beam / Composite warning / ABS

•


  Effective temperature range

  -4 ~ 185 °F (-20 ~ 85 °C)

•


  Storage temperature range

  -22 ~ 194 °F (-30 ~ 90 °C)

•


  Operating Voltage

  DC 12V

*registered trademarks of Bayerische Motoren Werke Aktiengesellschaft
