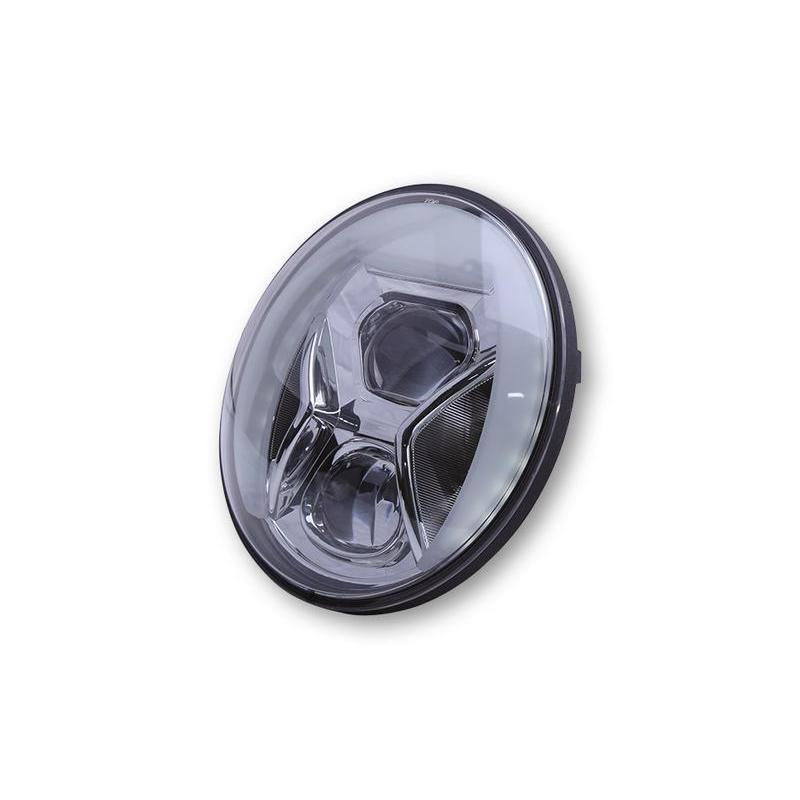

HIGHSIDER 226-002 : HIGHSIDER 7 LED Head Light Insert Type8"

HIGHSIDER LED main headlight insert TYPE 8, with daytime running, position and cornering light, round, E-Approved.

– See and be seen! – Of paramount importance to motorcyclists.

The installed LED daytime running light with position light in TYPE 8 is the perfect way to improve visibility during the day. The correct daytime running light switching on the vehicle is given without additional control boxes or switches, fulfils the regulations and simplifies the installation.

The HIGHSIDER LED headlight with cornering light, offers clear advantages over a conventional headlight. The static cornering light activates an additional light when the motorcycle is tilted in a bend. Due to the improved illumination you can see more of the curve and what is behind it. The driver can better adapt to the conditions and situations and is safer on the road. Two ellipsoid lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizing unique look.

To switch from daytime running light to low beam:
Press the high beam/light flasher button briefly (approx. 1 second) and release the button as soon as the low beam is active. Then the low beam is permanently active.

Dimensions:

• Diameter A = 177.8 mm


• Diameter GA = 169 mm


• Diameter I = 166.5 mm


• T = 59 mm


• R = 10 mm


• Total depth from glass to cooling fins: 99.10 mm

Fixing: bottom M8

Connections:

Power input: 3 pin connector :

• Red wire = low beam (+)


• White wire = high beam (+)


• Black wire = ground (-)

Separate wire (round connector):

• Red cable = LED position light (+)

Scope of delivery: 1 piece

Note: The resistor included in the scope of delivery is designed for the R nineT (2014), but may also be suitable for other vehicle models.
Through this resistor the parking light error message is prevented.
