HIGHSIDER 222-500 : HIGHSIDER LED Daytime Running Light - Rectangular

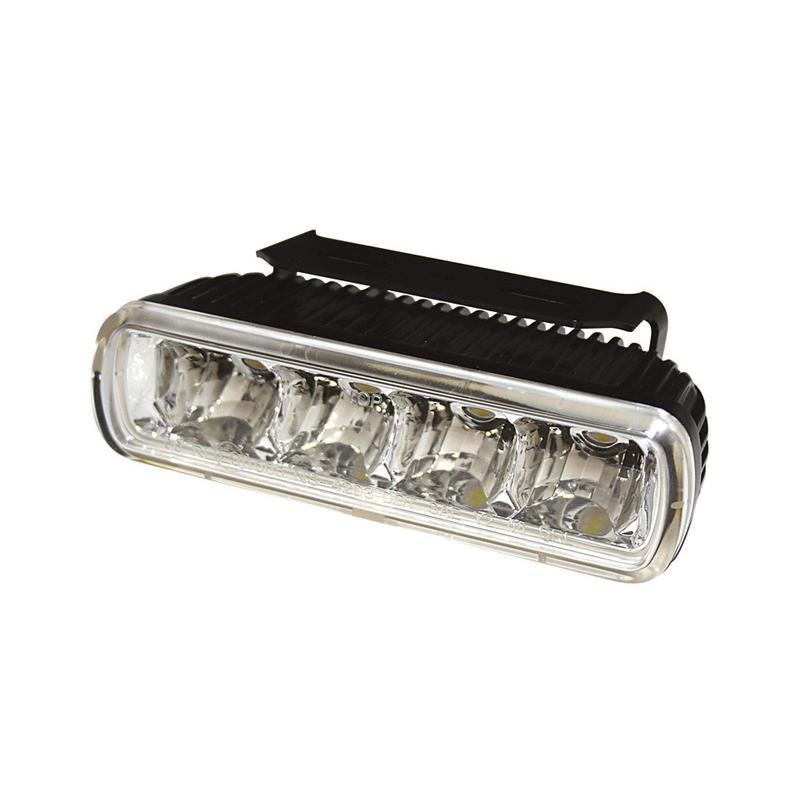

HIGHSIDER LED daytime running light

The LED daytime running light with 4 LEDs 1 Watt is built into a rectangular, black housing made of aluminium. The powerful LEDs significantly increase the perception of motorcyclists by other road users. Including universal holder, E-approved.

Dimensions:
Width: 145 mm
Height: 40.5 mm
Depth: 66 mm

Technical Specifications:
Current consumption at 12.5 Volt: only 0.3 Ampere (approx. 3.75 Watt)
Light current at 12 Volt: 215 Lumen

Connections:
Black cable: ground (-)
Red cable = plus (+), is connected to switched plus(ignition) connected.
White cable = is connected to the dipped beam control cable
