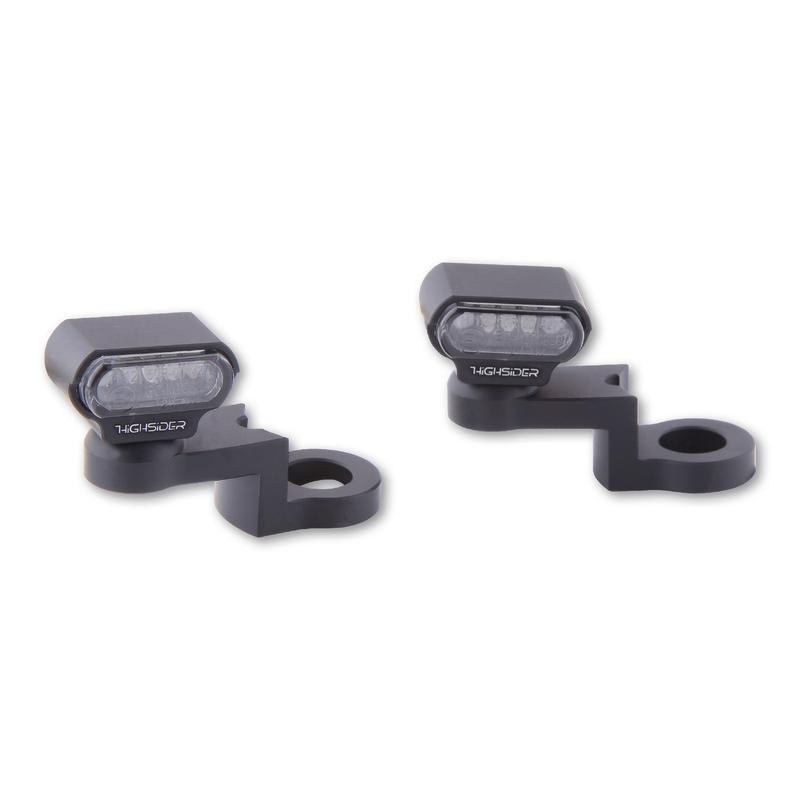

HIGHSIDER 204-116 : HIGHSIDER LED Indicators Type 1 Mounting

HIGHSIDER LED indicators with CNC mirror mounting TYPE 1

These LED indicators can be easily mounted in their black anodized aluminum brackets on the rearview mirrors and it lookson scramblers, custom bikes, choppers or cafe racers. The turn signals are useful for the front, but can also be mounted horizontally or vertically at the rear if required, E-approvedfor front and back.

In the right direction - with the innovative turn signal series from HIGHSIDER you not only show where you want to go, but also who you are. That is trend-setting Design at its best.

Dimensions:
Height with holder: 31.6 mm
Height: 13.6 mm
Width: 24 mm
Depth: 14 mm

Fixing:
Ø inside: 10 mm
Ø outside: 18 mm

Connections:
Yellow cable = indicator(+)
Black cable = ground (-)
