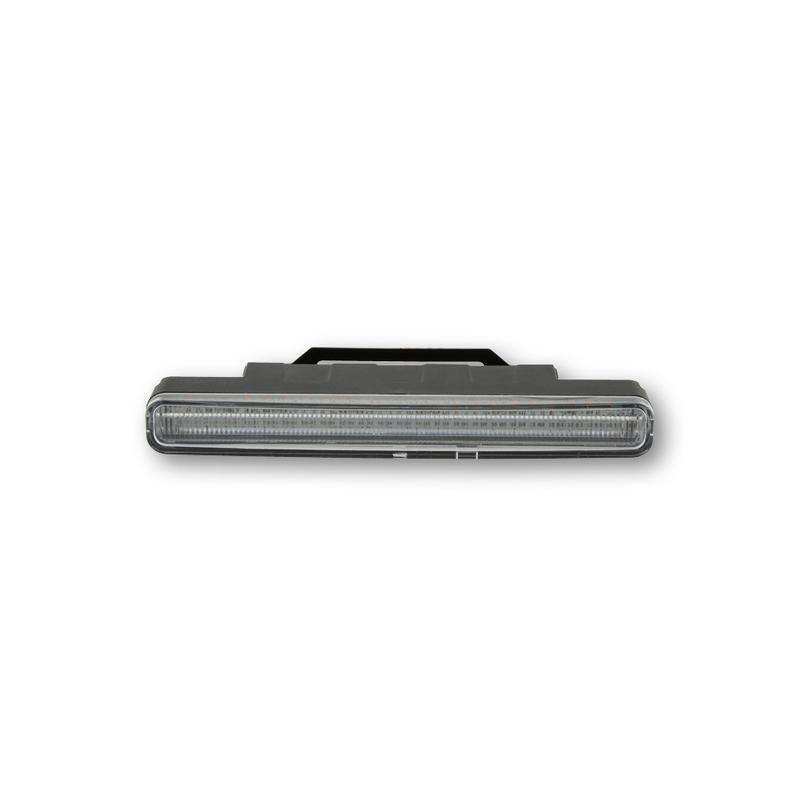

SHIN YO 222-503 : SHIN YO LED Daytime Running Light With Parking Light Function, Black With Universal Holder

SHIN YO LED daytime running light with parking light function

The LED daytime running light with several dozen power LEDs and parking light function ensures that bikers are well perceived by othersRoad users.

Packaged in a matt black, rectangular plastic housing, the daytime running light is manufactured for universal mounting.

With this daytime running light, the light switches on whenSwitching to low beam in dimmed parking light mode (position light), E-tested.

See and be seen - give your bike personality!

Dimensions:

Width: 150 mm

Height: 17 mm

Depth: 37.5 mm

U-holder:

Width holder100 mm

height holder: 15.5 mm

depth holder: 27.5 mm

thickness: 1.5 mm

bconnections: Current consumption at 12.5 Volt:

black = ground (-)

red = connect to switched positive (ignition 15+)\t

white= Connect control line to parking light (+)\t

Scope of delivery: 1 piece

Notes:

Prerequisite is a manually switched dipped beam light (light switch), otherwise the function of the TFL is not possible except forThe TFL must be connected in such a way that it goes out when the main headlamp is switched on.

(Exception: headlamp flasher). The rear position lamp must alwaysremain switched on, i.e. set to positive ignition.

If there are additional parking lights on the vehicle, these must be disconnected, as there may be a maximum of 2 parking lights on the vehicle.

optional available:

- HIGHSIDER DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles without light switch, 12V Art.-No.: 208-108

- Light switch on/off with clamp for handlebar mounting e.g. Art.-No.:240-044
