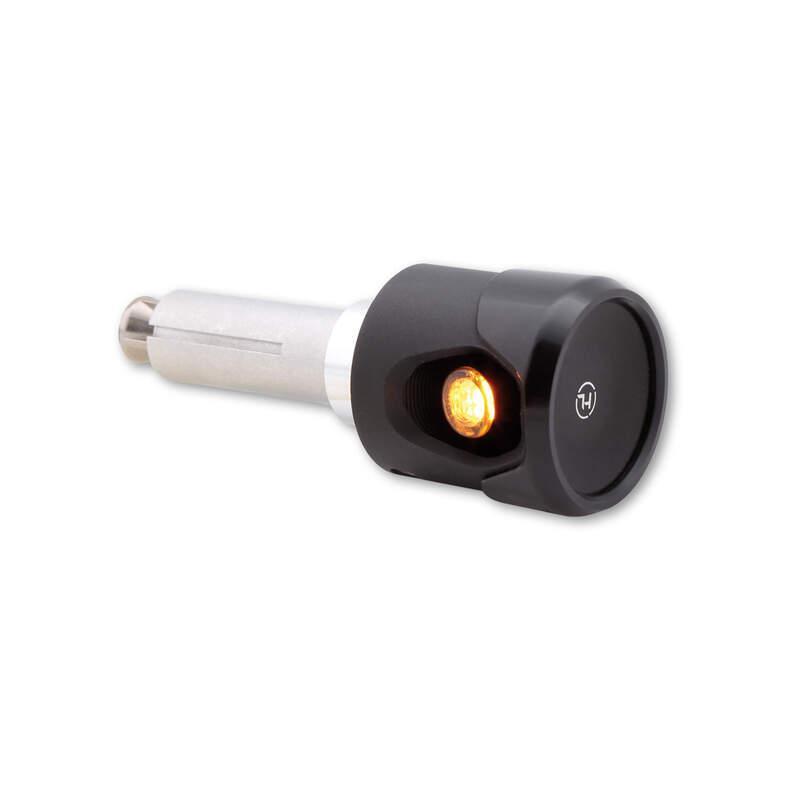

HIGHSIDER 203-0050 : HIGHSIDER Akron-Flash LED Handlebar End Indicator

€129.95
Tax included

Cover color: Orange

Light type: LED

Packaging: per pair

Color: Black

Approval: E-Mark

Position: Front

Composition: Aluminum

Color: Black

Cover color: Orange

Light type: LED

Packaging: per pair

Color: Black

Approval: E-Mark

Position: Front

Composition: Aluminum

Color: Black

  • Atención al cliente
  • Envío internacional

HIGHSIDER Akron-Flash LED handlebar end turn signal, E-approved as front direction indicator

– shapely handlebar end with flashing function –


With these handlebar end turn signals, HIGHSIDER again shows a real flair for excellent design and best functionality. The ultra-bright flashing signal lights of the latest generation from HIGHSIDER, with adjustable flashing angle, provide unmistakable directional indication.

The handlebar end turn signals are simply beautiful with tinted glass, high-quality CNC-milled aluminium housing and characteristic cap. So harmoniously packaged, the front direction indicators literally disappear from the vehicle when not in use. Easy to mount thanks to clamping system with different sleeves.

Universal fit for 7/8, 1 inch or X-Bar tube handlebars with an inner diameter of 12 to 22 mm. The cables are routed in the handlebar and have a good length of about 100 cm. Look forward to the HIGHSIDER AKRON-FLASH LED handlebar end turn signals, which are in no way ordinary.


Dimensions:
Width: 36 mm
Diameter: 34.5 mm
Cable length: approx. 1000 mm
Angle of the light modules continuously adjustable by 26°.


Connections:
Power consumption: 13.5 V, 0.26 A, 3.5W
Yellow cable = indicator (+)
Black cable = ground (-)


Scope of delivery: 1 pair
2 x clamping sleeves Ø 13 mm, Ø 16 mm
3 x centering ring
2 x central screw M6 with mounting ring for the HIGHSIDER AKRON-FLASH, and cone nut M6.


Note:
For the correct flashing timing resistors or a flasher relay may be necessary.

Reference V1108566001 Category Indicators/Tail Lights/Bulbs... Brand VICMA Condition New
