HIGHSIDER 222-502 : HIGHSIDER LED Daytime Running Light - Round

HIGHSIDER LED daytime running light, E-approved

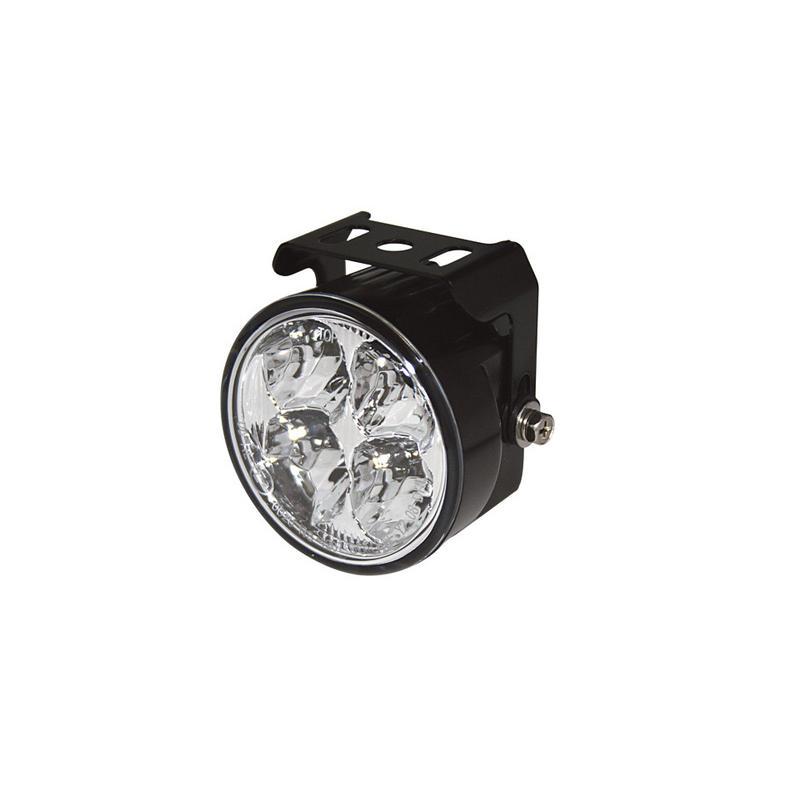

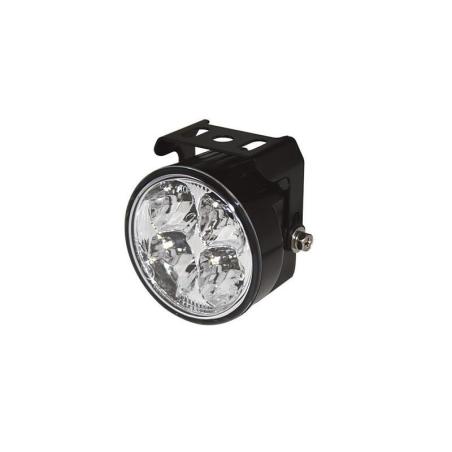

The LED daytime running light with 4 LEDs is built into a round, black-painted aluminium housing. The powerful LEDs significantly increase the perception of motorcyclists by other road users.

Dimensions:
Diameter: 71.5 mm
Depth: 47.5 mm

Technical specifications:
Current consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts)
Luminous flux at 12 volts: 150 lumens

Connections:
Black wire: ground (-)
Red wire = positive (+), connects to switched positive (ignition).
White cable = control line to parking light
