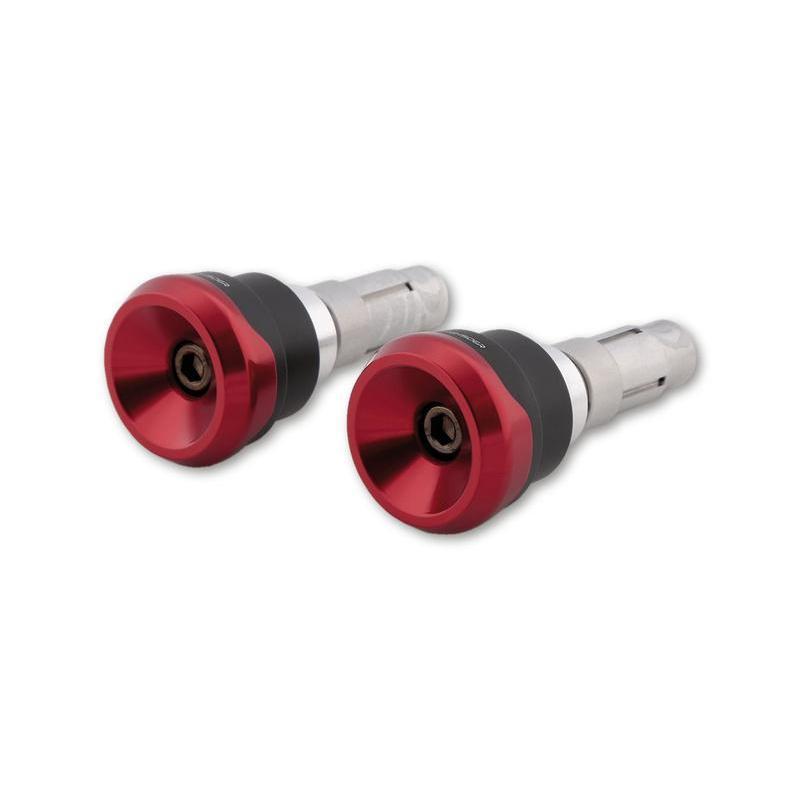

HIGHSIDER 161-0592 : HIGHSIDER Akron-LS Bar Ends

– Styling for your bike –

With these nobly designed Bar End Weights with handlebar end mirror receptacle, you can design your bike in detail according to your ideas. These end pieces are used for all HIGHSIDER & SHIN YO handlebar end mirrors with handlebar outer clamp. Handlebar ends also serve to reduce annoying vibrations on the handlebars. Thanks to clamping system with different sleeves universal suitable for 7/8 (Ø22 mm), 1 inch (Ø25,4 mm) or X-Bar (Ø28,6 mm) tube handlebars with an inner diameter from 12 to 22 mm.

Our accessories TIP:

Excellent in combination with Akron grips. The caps of the handlebar ends mirror the design of the grip rubbers and make your motorcycle cockpit an eye-catcher. If you do want to switch back to handlebar mirrors, you can easily use the optionally available coloured rings instead of a handlebar end mirror and thus add further colour accents. The colour rings are simply pushed over the end of the handlebar and fastened with the grub screw located on the ring.

Dimensions:

• Stem weight Ø: 37,4 mm


• Width: 29 mm


• Mount for mirror: Ø 29,90 mm, Width: 12 mm

Scope of delivery:

• 2 x Bar End Weights.


• 2 x clamping sleeves each with D. 12 mm and D. 16 mm


• 2 x spacer sleeves each with D. 14 mm, D. 18 mm and D. 21 mm


• 2 x M6 central screws


• 2 x M6 cone nuts

Note:

For Bar End Weights with clamping system, the ends of the handlebars must not be blocked by threaded inserts or similar.
Steering ends do not have to be approved, therefore do not require any test marks, certificates or ABEs.
