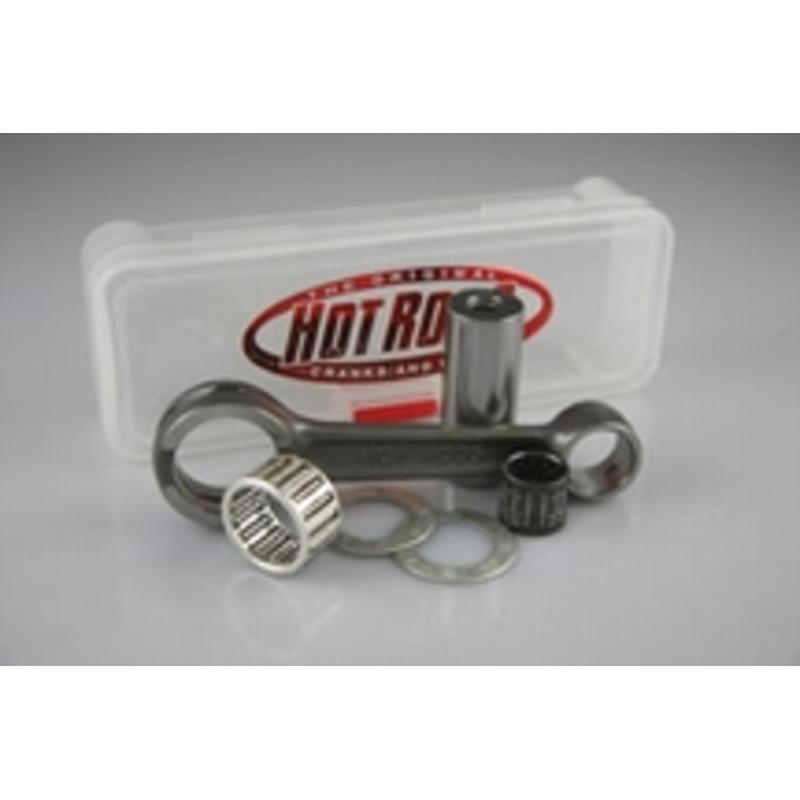

HOT RODS 8135 : HOT RODS Connecting Rod Kit - KTM SX50

Hot Rods connecting rods are machined with great precision to guarantee maximum reliability. They are suitable for high-performance replacement or preparation for the competition.

• Connecting rods Hot Rods Rods
• Contents: Connecting rod – crank pins – Needle roller cages
• Steel-forged connecting rod
• Treated crank pins
• Reinforced needle roller cages
• Excellent thermal resistance and physical properties for the assembly
• Recommended for racing or intensive use

Dimensions:

• Connecting rod length (centre-to-centre): 85mm
• Diameter: big end: 22mm - small end: 15mm
• Width: big end: 11.80mm  - small end: 14mm
• Cage (large): 16x22x11.8
• Cage (small): 12x15x14.8
• Crank pin: Diameter 16mm – Length 36mm
• Washer thickness: 0.85mm
