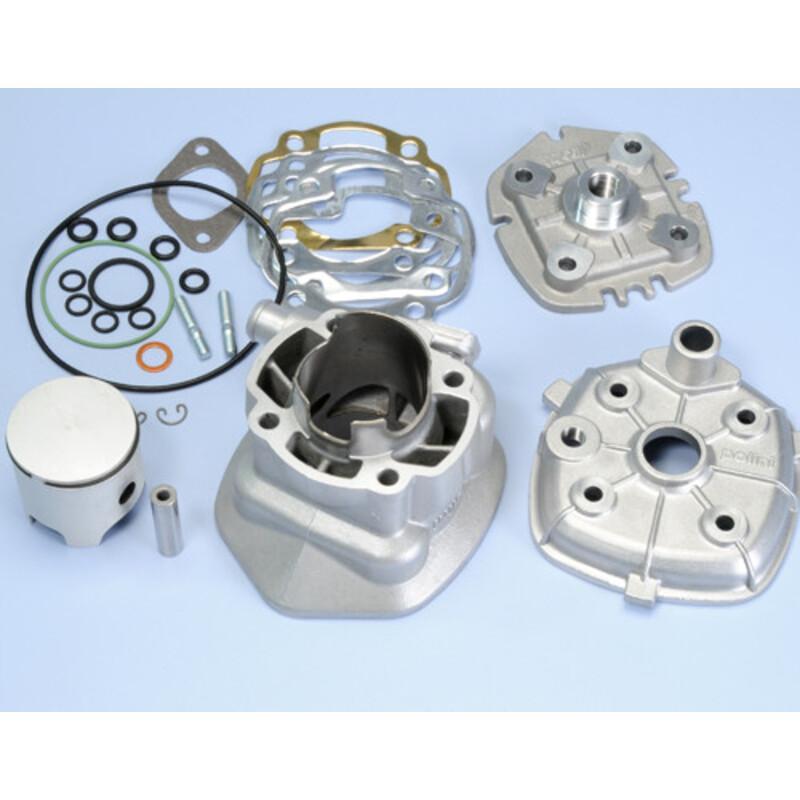

POLINI 166.0113 : POLINI Cylinder Kit H2O Ø 47,6 EVOL.3

POLINI EVOLUTION 3 CYLINDER KIT FOR YAMAHA-MINARELLI ENGINES:

GREAT PERFORMANCE TO BE THE NUMBER ONE

New Polini L/C “Evolution 3” aluminum kit for Yamaha and Minarelli engines . The 47,6

cylinder is homologated to race in all the scooter championships of the world and it

has the exhaust port with a bridge again. The design of the new bridge port allows the

exhaust port to be much bigger which is very important to achieve maximum

acceleration and more power at every rpm.

The Cylinder head is made of two pieces, it is made with a central dome that works as

the combustion chamber and a cover studied to better dissipate heat.

It is possible to fit the kit without modifying the original cases.

In order to achieve the best performance it is suggested to replace the crankshaft,

even if it is not compulsory.

TECHNICAL FEATURES:

• Power unit designed for high performance.


• Increased displacement with bore of 47,6 mm.


• Cylinder, light alloy die-cast


• “Closed Deck” system for the internal flow of the coolant.


• Cylinder liner with nickel-siliceous coating


• Five exhaust transfers of brand new drawing.


• Exhaust port of bigger dimensions with central bridge.


• Better exhaust gas scavenging


• Increase of the performance at high number of revolutions.


• Piston, gravity cast in light alloy with high silicon content


• Cast iron chromed piston rings 'S10'


• Head in light alloy.


• Combustion chamber with specific squish to eliminate detonations.

Code : 166.0113 – Sp. Ø 12

Code : 166.0113/10 – Sp. Ø 10
