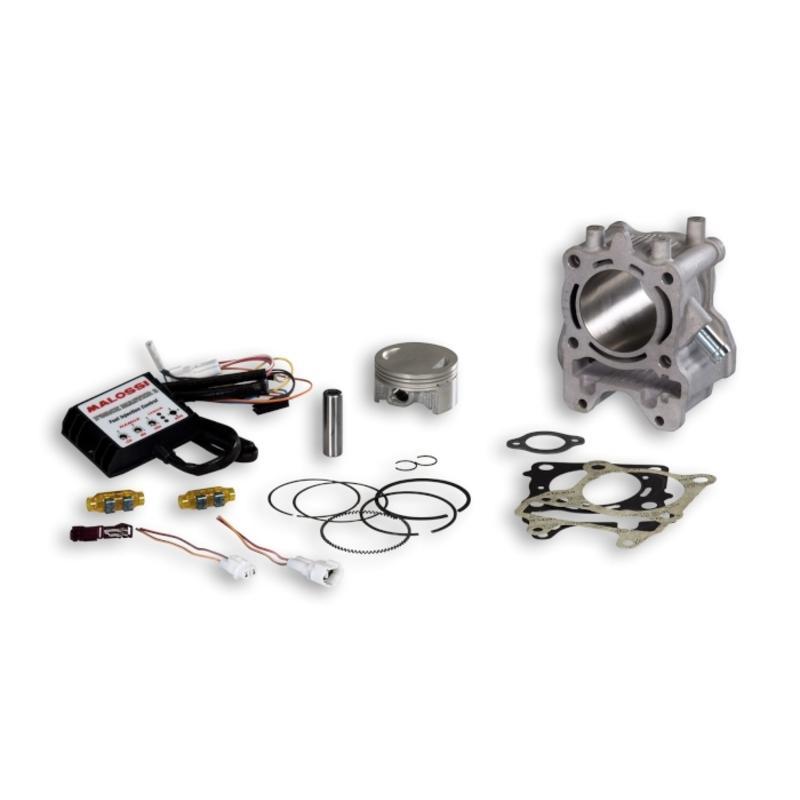

MALOSSI 3117559 : MALOSSI I-Tech Cylinder Kit Ø 61 PIN Ø 13 Honda 4-Stroke

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is!

Complete cylinder I-TECH 4 STROKE

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.


• Machining: on machine tools with high precision numerical control.


• Cylinder-piston connection with an allowance of 0.05 mm.


• Recalculated and upgraded heat exchange surfaces.

CDI Force Master

• Carburation adjusting


• ± 6% at min/medium/max


• RPM limiter : + 1000 RPM


• 4 different maps

Piston

• Ultra compact with 3 rings.


• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.


• Machining on machine tools with numerical control.


• Lightened and reinforced.


• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.


• I° ring compression in nitrided and chromium steel.


• II° special cast iron ring.


• Three piece scraper ring made of chromiumplated special steel alloy.
