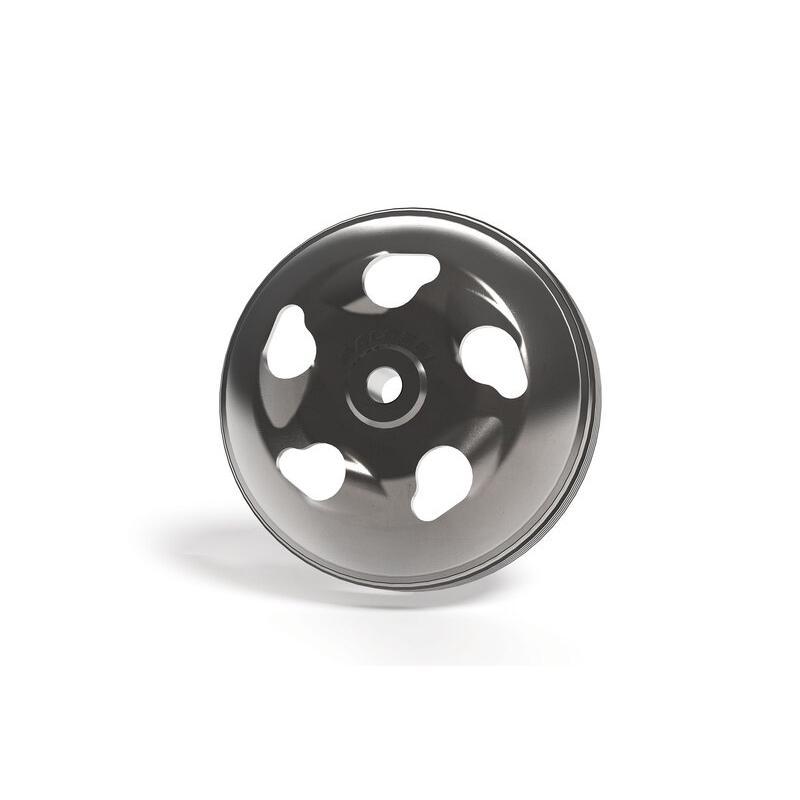

MALOSSI 7715916B : MALOSSI Clutch Bell With Plates ø 135 mm

Description

Reinforced clutch bell with cooling fin ring.

The Wing Clutch Bell has a ring-shaped fine-ribbed reinforcing ring. This ensures excellent heat dissipation. This results in very good starting behaviour and best acceleration from low engine speeds.

This technological innovation is a result of extensive testing on the race track.

The design of the clutch bell is based on the following principles:

• The design of the cooling fins allows for a larger surface area to dissipate heat, thereby significantly reducing the operating temperature of the clutch bell. Durability is greatly increased.


• The stresses and strains of city traffic, uphill riding and riding with a pillion rider place special demands on a clutch system.

For this reason, Malossi has further developed the Maxi Wing Bell to protect your clutch.

With high-performance racing engines, the clutch system is also subject to extreme speed loads. The centrifugal forces increase in square with the speed. The reinforced cooling fin ring counteracts this load and protects the bell against failure.

TECHNICAL DATA

• The bell housing is made of tough deep-drawn steel


• The teeth for the gear shaft are made of special steel, machine-welded and reworked


• Machined clutch friction surface for minimum tolerances


• Nitride-hardened friction surface


• Dynamically balanced
