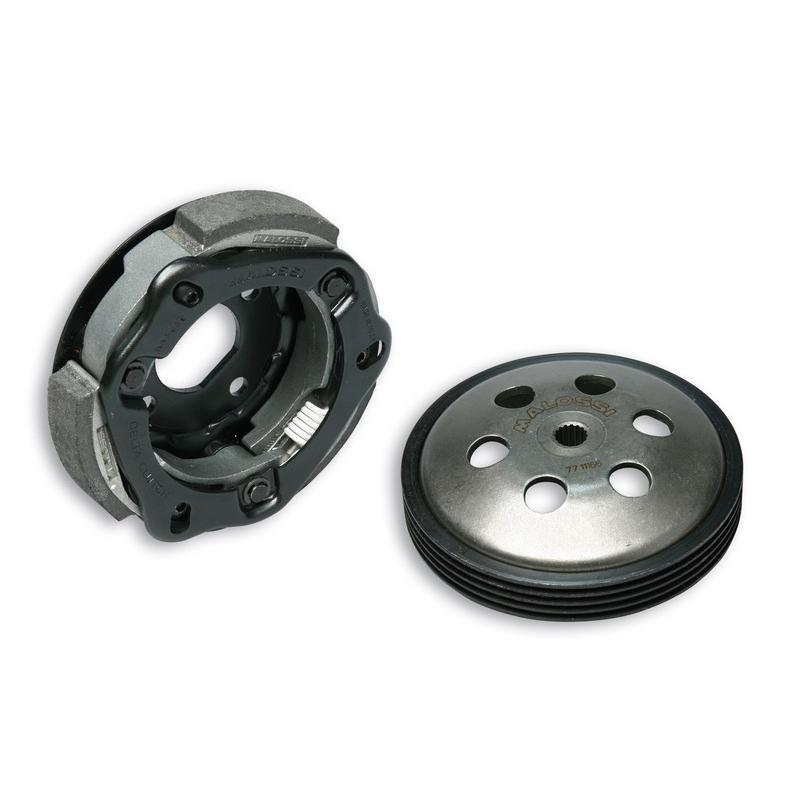

MALOSSI 5214113 : MALOSSI Delta System Clutch And Bell Ø 107 For Yamaha - Minarelli Engine

Description

DELTA SYSTEM

Centrifugal clutch system with clutch bell for Scooter RACING

The system contains the famous :

• Patented adjustable clutch (Delta clutch).


• In addition, a clutch bell (Wing clutch bell) with cooling ribs, dynamically balanced to prevent defects, developed for competition and sporting use.

Delta clutch

The Delta clutch was developed in the context of competitive scooter sport and quickly became the product benchmark in its field and the key to greater performance.

The simplicity of the system allows quick adjustment of the spring rates to the centrifugal forces and also offers the possibility of exchanging springs with different spring rates (K value).

The corresponding spring rates (K-values) are listed in the Malossi catalogue. In addition, this system offers a position adjustment of the small mass. This influences the pressure between the friction material and the clutch bell. The small mass can also be exchanged with other masses/clutch weights of different weights.

The entire system is patented to prevent brazen attempts at copying and counterfeiting.

The Delta clutch has established itself as a standard product for many experienced tuning professionals and the facts speak for themselves: the Delta clutch is used by all racing teams and countless competition drivers and sales figures are constantly increasing.

As with all other products, Malossi constantly tests the Delta clutch in use. As a result, the clutch has been successively optimised through small but decisive updates. This has enabled the Delta clutch to defend its leading market position. We are very proud that our Malossi clutches are asbestos-free. In order to achieve the current quality standard in terms of reliability and friction material, we have invested heavily in research. With great confidence, we can now confirm that we have the exclusive formula for the development of a high-temperature resistant material that does not change its friction coefficient even in long-term use.

Wing clutch bell

Technical details

• Clutch bell forged from Fe DC04 deep-drawn steel


• Carbon steel gearing made from round material and processed using the tungsten inert gas welding process


• Nitride-hardened surface


• Ribbed reinforcement ring, made of milled carbon steel, brushed surface finish, press-fitted


• 100% dynamically balanced


• .

Due to the strong demand for these two products, we have decided to offer them in a joint delivery unit.

This allows Malossi to offer its customers two quality products at a more favourable price.
